933726100 | Lumberg Automation

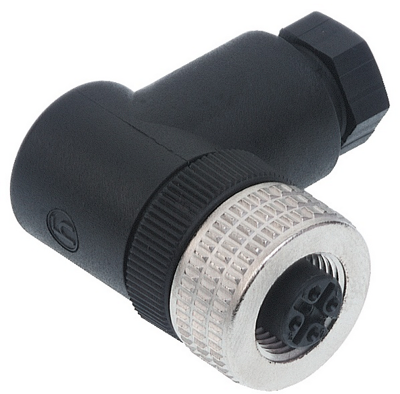

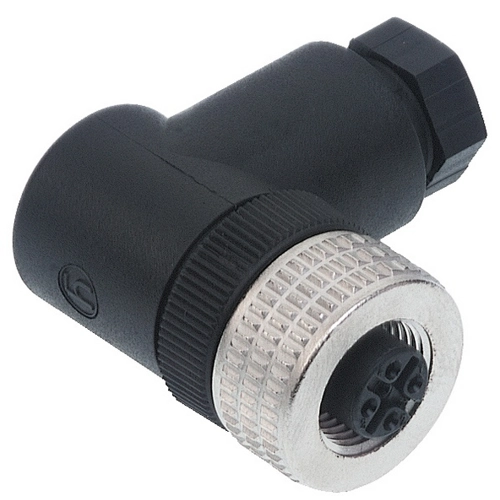

Jack, M12, 4 pole, screw connection, coupling nut, angled, 933726100
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.9607 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.96 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9607 €
10 pcs.
8.0325 €
50 pcs.
7.5089 €
100 pcs.
7.0567 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 933726100, Lumberg Automation
M12 Field attachable connector: female, angled, 4-pin, unshielded, black housing, screw type, 230 V AC/DC.
Features
- Contact material: CuSn
- With O-ring
- Pollution degree: 3
- Housing material: PA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | coupling nut | |
| Orientation | angled | |
| Contact connection | screw connection | |
| contact surface | tin-plated | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
