933393001 | Lumberg Automation

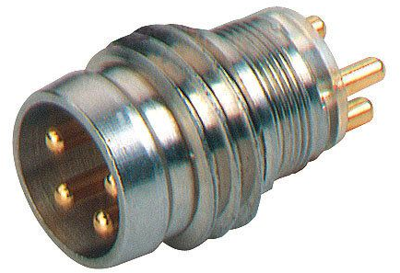

Plug, M8, 4 pole, PCB connection, snap-in/screw locking, straight, 933393001
Unit Price (€ / pc.)
2.4157 € *
Standard delivery time from the manufacturer is: 10 Weeks
Sensor-actuator connector, 933393001, Lumberg Automation
M8 Insert Sensor/actuator receptacle connector: male, insert, M8 - mating side, print contacts - connecting side, 4-pin, unshielded, metallic grey housing, 30 V AC/DC, 4 A.
Features
- Contact material: CuZn
- A-coded
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | PCB connection | |
| contact surface | gold-plated | |
| Coding | A | |
| Thread size | M8 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67/IP68 | |
| Product type | plug | |
| Pin number | 4 pole | |
| Type of locking | snap-in/screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
