933176500 | Lumberg Automation

Jack, M12, 5 pole, screw connection, screw locking, angled, 933176500

Order No.: 50F1362
EAN: 4099889692853
MPN:
933176500
ELWIKA 5012 PG9 Au
Series: ELWIKA
933176500 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
9.282 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
928.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
9.282 €

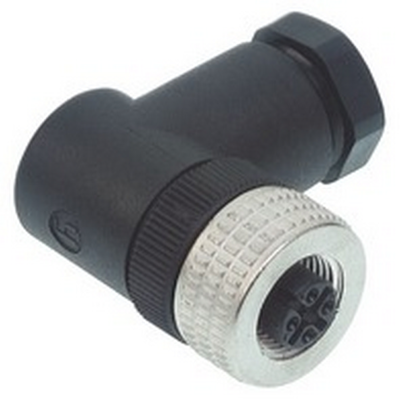

Sensor-actuator connector, 933176500, Lumberg Automation

M12 Field attachable connector: female, angled, 5-pin, unshielded, black housing, screw type, 50 V AC/60 V DC.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Housing material: PA
Technical specifications
Filter Property Value
Contact connection screw connection
Degree of protection (IP) IP67
Coding A
Orientation angled
Pin number 5 pole
Type of locking screw locking
contact surface gold-plated
Thread size M12
Product type jack
Logistics
Property Value
Country of origin HU
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
