933164500 | Lumberg Automation

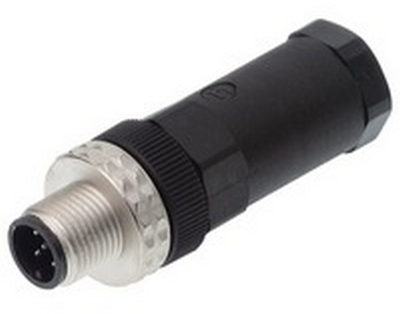

Plug, M12, 5 pole, screw connection, coupling screw, straight, 933164500

Order No.: 50F1348
EAN: 4099889692761
MPN:
933164500
ELST 5012 PG9 Au
Series: ELST
933164500 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
9.282 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
928.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
9.282 €

Sensor-actuator connector, 933164500, Lumberg Automation

M12 Field attachable connector: male, straight, 5-pin, unshielded, black housing, screw type, 50 V AC/60 V DC.

Features

  • Contact material: CuSn
  • With O-ring
  • Pollution degree: 3
  • Housing material: PA
Technical specifications
Filter Property Value
Contact connection screw connection
contact surface gold-plated
Assembly cable assembly
Coding A
Thread size M12
Orientation straight
Degree of protection (IP) IP65/IP67
Product type plug
Pin number 5 pole
Type of locking coupling screw
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
