933158001 | Lumberg Automation

Panel plug, M8, 4 pole, solder connection, screw locking, straight, 933158001

Order No.: 50F2008
EAN: 4099889694598
MPN:
933158001
ELST 4408 RV LH
Series: ELST
933158001 Lumberg Automation Sensor-Actuator Connectors

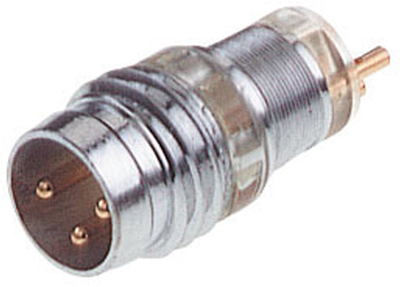

Image may differ
Unit Price (€ / pc.)
5.9143 € *
Available: 38 pcs.
Total Price:
5.91 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9143 €
10 pcs.
5.2003 €
100 pcs.
4.5696 €
250 pcs.
4.3911 €
1000 pcs.
4.0936 €
*incl. VAT plus shipping costs
Subject to prior sale

Appliance connector for M 8 sensor, type Hirschmann ELST.

For press-fit tube mounting, in metal housing and mounting opening for Mini-LED; Rated voltage: 30 V AC/DC. Rated current: 3.0 A. Contact type: male. Pin diameter: 1.0 mm. Contact material: gold-plated copper tin. Contact carrier: PA, transparent. Housing: CuZn/Ni Cr. Connection type: solder terminals, for cables up to max. 0.25 mm². Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Operating temperatures: - 25 to +90 °C. Standards: IEC 61076-2-101 (Ed. 1), IEC 60947-5-2. Certifications: UL.

Technical attributes (type, number of poles, snap and screw lock type (snap/screw)): ELST 4408 RV LH, 4 - pole, snap/screw

Technical specifications
Filter Property Value
Contact connection solder connection
Degree of protection (IP) IP67
Coding A
Orientation straight
Assembly cable assembly
Additional parts equipped
Pin number 4 pole
Type of locking screw locking
contact surface gold-plated
Thread size M8
Product type panel plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
