933147001 | Lumberg Automation

Panel plug, M8, 4 pole, solder connection, screw locking, straight, 933147001

Order No.: 50F2032
EAN: 4099889694666
MPN:
933147001
ELST 4408 RV FM 805
Series: ELST
933147001 Lumberg Automation Sensor-Actuator Connectors

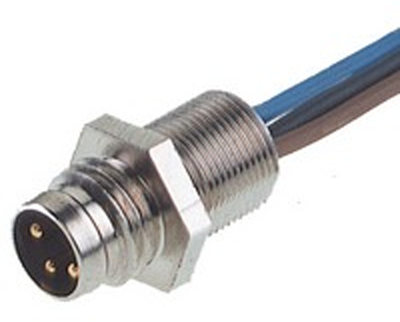

Image may differ
Unit Price (€ / pc.)
13.8754 € *
Available: 204 pcs.
Total Price:
13.88 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8754 €
10 pcs.
12.2094 €
50 pcs.
11.3645 €
150 pcs.
10.8766 €
500 pcs.
10.3292 €
*incl. VAT plus shipping costs
Subject to prior sale

Appliance connector for M 8 sensor, Hirschmann ELST

For press-fit tube mounting, in metal housing and mounting opening for Mini-LED.

Rated voltage: 30 V AC/DC

Rated current: 3.0 A

Contact type: male

Pin diameter: 1.0 mm

Contact material: gold-plated copper tin

Contact carrier: PA, transparent

Housing: CuZn/Ni Cr

Connection type: solder terminals, for cables up to max. 0.25 mm²

Degree of protection (IEC 60529): IP 67

Degree of soiling: 3

Operating temperatures: - 25 to +90 °C

Standards: IEC 61076-2-101 (Ed. 1), IEC 60947-5-2

Certifications: UL

Technical specifications
Filter Property Value
Contact connection solder connection
Degree of protection (IP) IP67
Orientation straight
Assembly cable assembly
Additional parts equipped
Pin number 4 pole
Type of locking screw locking
contact surface gold-plated
Thread size M8
Product type panel plug
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
