933146001 | Lumberg Automation

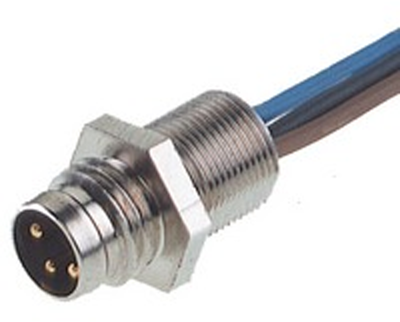

Panel plug, M8, 3 pole, solder connection, screw locking, straight, 933146001

Order No.: 50F2030
EAN: 4099889694659
MPN:
933146001
ELST 3308 RV FM 805
Series: ELST
933146001 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
12.1142 € *
Available: 94 pcs.
Total Price:
12.11 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1142 €
10 pcs.
10.6624 €
50 pcs.
9.9246 €
150 pcs.
9.4962 €
500 pcs.
9.0202 €
*incl. VAT plus shipping costs
Subject to prior sale

Appliance connector for M 8 sensor, type Hirschmann ELST.

For press-fit tube mounting, in metal housing and mounting opening for Mini-LED; Rated voltage: 60 V AC/DC. Rated current: 3.0 A. Contact type: male. Pin diameter: 1.0 mm. Contact material: gold-plated copper tin. Contact carrier: PA, transparent. Housing: CuZn/Ni Cr. Connection type: solder terminals, for cables up to max. 0.25 mm². Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Operating temperatures: - 25 to +90 °C. Standards: IEC 61076-2-101 (Ed. 1), IEC 60947-5-2. Certifications: UL.

Panel connectors for front mounting, type ELST.

Metal housing with mounting thread M 8 x 0.5 mm, O-ring and molded PVC stranded wire, 0.5 m length; Conductor cross-section: 0.25 mm². Housing: CuZn/Ni. Material contact block/sealing: PA/NBR, black. Degree of protection (IEC 60529): IP 67 (snap-in lock), IP 68 (screw lock).

Technical attributes (type, number of poles, snap and screw lock type (snap/screw)): ELST 3308 RV FM 8 05, 3-pole, snap/screw

Technical specifications
Filter Property Value
Assembly cable assembly
Coding A
Type of locking screw locking
Contact connection solder connection
Pin number 3 pole
Additional parts equipped
Degree of protection (IP) IP67
Product type panel plug
contact surface gold-plated
Orientation straight
Thread size M8
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
