932559406 | Lumberg Automation

Plug, M12, 4 pole, solder connection, straight, 932559406

Order No.: 50F1316
EAN: 4099889692471
MPN:
932559406
ELST 400 RD/12 093 Sn
Series: ELST
932559406 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
1.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3090 €

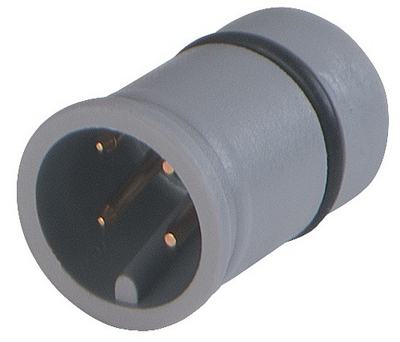

Sensor-actuator connector, 932559406, Lumberg Automation

M12 Insert Sensor/actuator receptacle connector: male, insert with O-ring, M12 - mating side, solder contacts - connecting side, 4-pin, unshielded, grey body, 150 V AC/DC, 4 A.

Features

  • Contact material: CuZn
  • Overvoltage category: II
  • Pollution degree: 3
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Contact connection solder connection
Degree of protection (IP) IP65/IP67
Coding A
Orientation straight
Assembly cable assembly
Pin number 4 pole
contact surface tin-plated
Thread size M12
Product type plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
