932440106 | Lumberg Automation

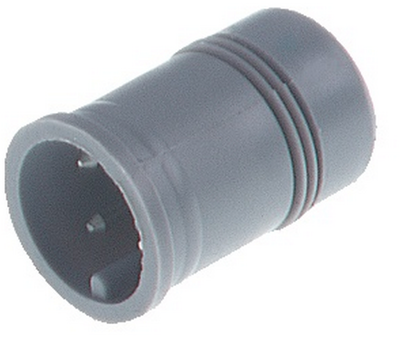

Plug, M12, 4 pole, solder connection, straight, 932440106

Order No.: 50F1319
EAN: 4099889692501
MPN:
932440106
ELST 400/12 093 Au
Series: ELST
932440106 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
1.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.2614 €

Sensor-actuator connector, 932440106, Lumberg Automation

M12 Insert Sensor/actuator receptacle connector: male, insert with ribs, M12 - mating side, solder contacts - connecting side, 4-pin, unshielded, grey body, 150 V AC/DC, 4 A.

Features

  • Contact material: CuZn
  • A-coded
  • Pollution degree: 3
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Contact connection solder connection
Degree of protection (IP) IP65/IP67
Coding A
Orientation straight
Assembly cable assembly
Pin number 4 pole
contact surface gold-plated
Thread size M12
Product type plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
