932256112 | Lumberg Automation

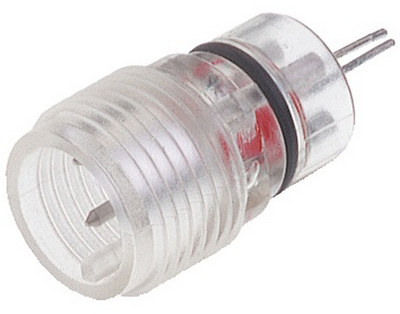

Plug, M12, 4 pole, solder connection, screw locking, straight, 932256112
Unit Price (€ / pc.)
3.1535 € *
Standard delivery time from the manufacturer is: 22 Weeks
Sensor-actuator connector, 932256112, Lumberg Automation
M12 Insert Sensor/actuator receptacle connector: male, insert with LED, O-ring and external threads, M12 - mating side, solder contacts - connecting side, red LED, 4-pin, unshielded, transparent body, 10-30 V DC, 4 A.
Features
- Contact material: CuZn
- Housing material: PA
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67/IP68 | |
| Coding | A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | solder connection | |
| Thread size | M12 | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
