931902206 | Lumberg Automation
Panel plug, M12, 4 pole, solder pins, screw locking, straight, 931902206
Unit Price (€ / pc.)
1.8445 € *
Available: 350 pcs.
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
25 pcs.
1.5470 €
100 pcs.
1.4399 €
250 pcs.
1.3685 €
1000 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale

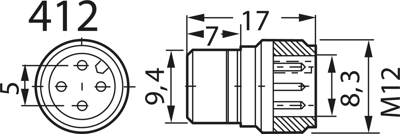

Appliance connector M 12/FIXCON for sensors, type Hirschmann ELST.
For press-fit tube mounting and (only ELST 412 Sn) screw locking; Rated voltage: 150 V AC/DC. Rated current: 4.0 A. Diameter: 1.0 mm. Contacts: CuZn, tinned or gold-plated. solder terminals: max. 0.5 mm². Contact carrier/housing: PA, gray. Degree of protection type 400/412: IP 67/IP 68. Degree of soiling: 3. Operating temperatures: –25 to +90 °C. Standards: IEC 61076-2-101 (Ed. 1), IEC 60947-5-2. Version: type 400 without venting slot, type 412 with O-ring seal. Certifications: UL.
Technical attributes (type, number of poles, contact finish): ELST 412 Sn, 4-pole, tinned
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68 | |
| Assembly | PCB mounting | |
| Additional parts | equipped | |
| Coding | A | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | solder pins | |
| Thread size | M12 | |
| Product type | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
