931902106 | Lumberg Automation

Plug, M12, 4 pole, solder connection, screw locking, straight, 931902106

Order No.: 50F1326
EAN: 4099889692570
MPN:
931902106
ELST 412 Au grau
Series: ELST
931902106 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
1.2495 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.2495 €

Sensor-actuator connector, 931902106, Lumberg Automation

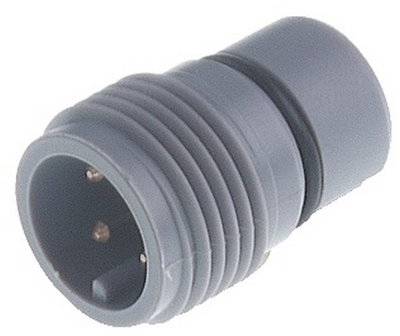

M12 Insert Sensor/actuator receptacle connector: male, insert with O-ring and external threads, M12 - mating side, solder contacts - connecting side, 4-pin, unshielded, grey body, 230 V AC/DC, 4 A.

Features

  • Contact material: CuZn
  • Housing material: PA
  • Pollution degree: 3
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Contact connection solder connection
contact surface gold-plated
Coding A
Thread size M12
Orientation straight
Degree of protection (IP) IP67/IP68
Product type plug
Pin number 4 pole
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
