89430 | Lumberg Automation
Plug, M12, 8 pole, crimp connection, screw locking, straight, 89430
Unit Price (€ / pc.)
11.8405 € *
Standard delivery time from the manufacturer is: 22 Weeks

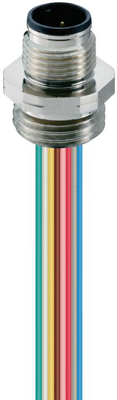

Sensor-actuator connector, 89430, Lumberg Automation
M12 Standard Sensor/actuator receptacle connector: male, front mount, M12 - mating side, stranded wires - connecting side, 8-pin, unshielded, metallic grey housing, 30 V AC/DC, 2 A.
Features
- Contact material: CuZn
- A-coded
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 8 pole | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Product type | plug | |
| Coding | A | |
| Assembly | front mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
