86153 | Lumberg Automation
Panel socket, M12, 12 pole, crimp connection, screw locking, straight, 86153
Unit Price (€ / pc.)
15.4819 € *
Available: 10 pcs.
Sensor-actuator connector, 86153, Lumberg Automation

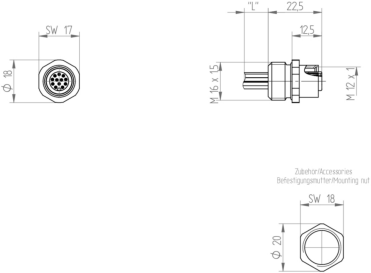

M12 Standard Sensor/actuator receptacle connector: female, front mount, M12 - mating side, stranded wires - connecting side, 12-pin, unshielded, metallic grey housing, 30 V AC/DC, 1.5 A.
Features
- Contact material: CuZn
- A-coded
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67 | |
| Assembly | front mounting | |
| Coding | A | |
| Thread size | M12 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Product type | panel socket | |
| contact surface | gold-plated | |
| Contact connection | crimp connection | |
| Pin number | 12 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
