81134 | Lumberg Automation

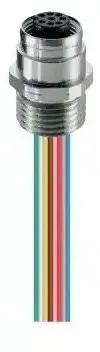

Panel socket, M12, 4 pole, crimp connection, screw locking, straight, 81134

Order No.: 50F1836
EAN: 4099889693683
MPN:
81134
RKF 4/1 M
Series: RKF
81134 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
8.3776 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
8.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.3776 €

Sensor-actuator connector, 81134, Lumberg Automation

M12 Standard Sensor/actuator receptacle connector: female, front mount, M12 - mating side, stranded wires - connecting side, 4-pin, unshielded, metallic grey housing, 230 V AC/DC, 4 A.

Features

  • Contact material: CuSn
  • Housing material: CuZn, nickel-plated
  • Pollution degree: 3
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Contact connection crimp connection
Degree of protection (IP) IP68
Coding A
Orientation straight
Assembly front mounting
Pin number 4 pole
Type of locking screw locking
contact surface gold-plated
Thread size M12
Product type panel socket
Logistics
Property Value
Country of origin CZ
Customs tariff number 85444290
Compliance
Property Value
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
