74212 | Lumberg Automation

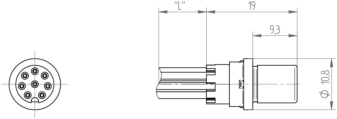

Panel socket, M12, 8 pole, crimp connection, straight, 74212
Unit Price (€ / pc.)
5.9857 € *
Standard delivery time from the manufacturer is: 22 Weeks
Sensor-actuator connector, 74212, Lumberg Automation
M12 Insert Sensor/actuator receptacle connector: female, insert with O-ring, M12 - mating side, stranded wires - connecting side, 8-pin, unshielded, black body, 30 V AC/DC, 2 A.
Features
- Contact material: CuZn
- Overvoltage category: III
- Pollution degree: 3
- Degree of protection: IP68
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel socket | |
| Coding | A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
