66248 | Lumberg Automation

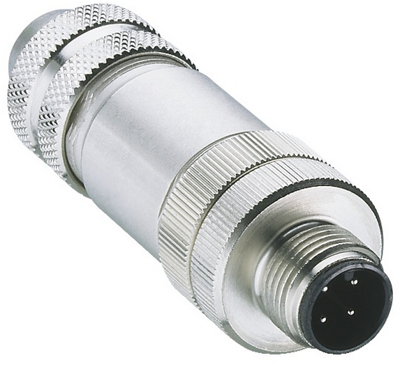

Plug, M12, 5 pole, screw connection, straight, 66248
Unit Price (€ / pc.)
   40.0911 €  *
   Available: 4 pcs.
 Total Price:
  40.09 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 40.0911 €
 10 pcs.
 37.6873 €
 25 pcs.
 35.0455 €
 50 pcs.
 32.2371 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Sensor-actuator connector, 66248, Lumberg Automation
Field attachable connector, M12 male connector with threaded joint, shieldable, assembling with screw terminals, 5 poles, B coding.
Features
- Spring terminals
- Contact material: stainless steel, silver-plated, gold plated
- Pollution degree: 3
- Degree of protection: IP67
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| Coding | B | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | plug | |
| Pin number | 5 pole |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
