64161 | Lumberg Automation

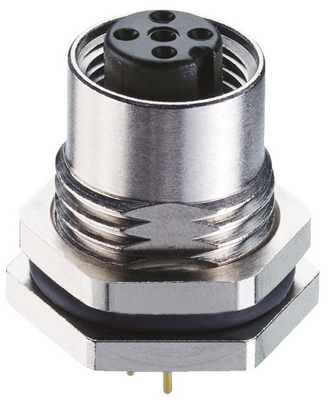

Panel socket, M12, 4 pole, PCB connection, screw locking, straight, 64161
Unit Price (€ / pc.)
9.0321 € *
Standard delivery time from the manufacturer is: 22 Weeks
Sensor-actuator connector, 64161, Lumberg Automation
Receptacle connector, M12 female connector for rear mounting, 4-pole, D-coding, printed contacts, chassis side thread PG 9.
Features
- PCB-s
- Contact material: CuZn, gold-plated
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | PCB connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel socket | |
| Coding | D | |
| Assembly | rear mounting | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| RoHS conform | Yes |
| SVHC free | No |
