49798 | Lumberg Automation

Panel socket, M12, 8 pole, solder connection, screw locking, straight, 49798

Order No.: 50F1521
EAN: 4099889692983
MPN:
49798
PRKFM 8/0,5 M
Series: PRKFM
49798 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
15.8032 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
15.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.8032 €

Sensor-actuator connector, 49798, Lumberg Automation

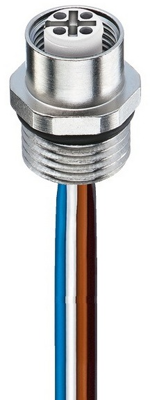

M12 Receptacle connector, M12 female connector for front mounting, housing of stainless steel, assembled stranded wire, solder contacts potted with epoxy, chassis side thread M16 x 1.5.

Features

  • Contact material: CuZn, pre-nickeled and 0.8 microns gold-plated
  • Pollution degree: 3
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Contact connection solder connection
Degree of protection (IP) IP67
Coding A
Orientation straight
Assembly front mounting
Pin number 8 pole
Type of locking screw locking
contact surface gold-plated
Thread size M12
Product type panel socket
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
