45740 | Lumberg Automation

Panel socket, M12, 4 pole, solder connection, screw locking, straight, 45740

Order No.: 50F1515
EAN: 4099889692945
MPN:
45740
PRKFM 4/0,5 M
Series: PRKFM
45740 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
12.6259 € *
Available: 9 pcs.
Total Price:
12.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.6259 €

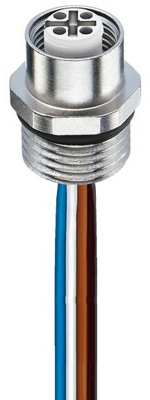

Sensor-actuator connector, 45740, Lumberg Automation

M12 Receptacle connector, M12 female connector for front mounting, housing of stainless steel, assembled stranded wire, solder contacts potted with epoxy, chassis side thread M16 x 1.5.

Features

  • Contact material: CuZn, pre-nickeled and 0.8 microns gold-plated
  • Pollution degree: 3
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Contact connection solder connection
Degree of protection (IP) IP67
Coding A
Orientation straight
Assembly front mounting
Pin number 4 pole
Type of locking screw locking
contact surface gold-plated
Thread size M12
Product type panel socket
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
