26148 | Lumberg Automation

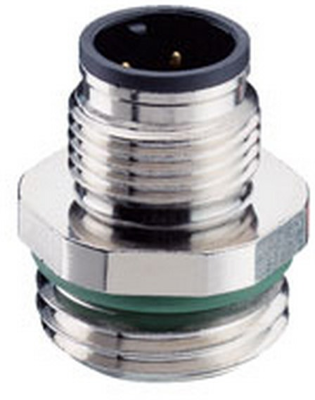

Plug, M12, 5 pole, solder connection, screw locking, straight, 26148
Unit Price (€ / pc.)
7.9968 € *
Standard delivery time from the manufacturer is: On Request
Sensor-actuator connector, 26148, Lumberg Automation
M12 Standard Sensor/actuator receptacle connector: male, front mount, M12 - mating side, stranded wires - connecting side, 5-pin, unshielded, metallic grey housing, 50 V AC/60 V DC, 4 A.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Contact connection | solder connection | |
| Product type | plug | |
| Coding | A | |
| Assembly | front mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
