26136 | Lumberg Automation

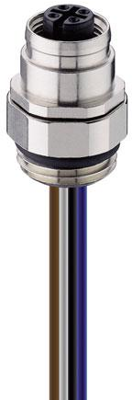

Panel socket, M12, 3 pole, solder connection, straight, 26136
Unit Price (€ / pc.)
7.4018 € *
Standard delivery time from the manufacturer is: 15 Weeks
Sensor-actuator connector, 26136, Lumberg Automation
M12 Receptacle connector, combined FIXCON/ M12 female connector for front mounting, adjustable, assembled stranded wire, solder contacts potted with epoxy, chassis side thread M16 x 1.5.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M12 | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Assembly | front mounting | |
| Contact connection | solder connection | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
