2135 | Lumberg Automation

Jack, M23, 19 pole, solder connection, screw locking, straight, 2135

Order No.: 50F2302
EAN: 4099889694963
MPN:
2135
RKC 190/13,5
Series: RKC

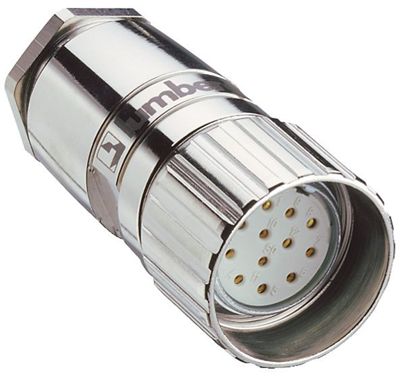

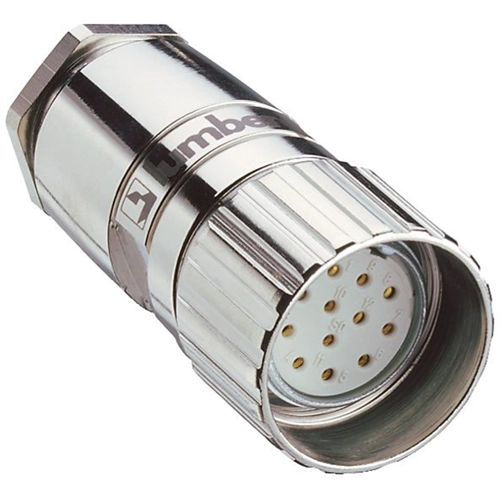

2135 Lumberg Automation Sensor-Actuator Connectors Image 1

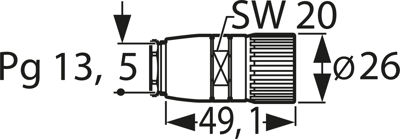

2135 Lumberg Automation Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
33.0701 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
33.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.0701 €

Sensor/actuator connectors, M23, type Lumberg RKC.

With screw lock, for custom assembly via solder connections; Rated voltage: 120 V. Rated current: 7.5 A. Test voltage (60 s): 1.5 kVRMS. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67 in screwed state. Housing material: CuZn, nickel-plated. Contact block: PBT GF. Contacts: CuZn, 0.8 µm gold-plated on nickel substrate. Ambient temperatures: - 40 to +125 °C.

Straight jacks, type RKC.

Type: RKC 190/13.5, 19 - pole

Technical specifications
Filter Property Value
Contact connection solder connection
contact surface gold-plated
Assembly cable assembly
Additional parts equipped
Thread size M23
Orientation straight
Degree of protection (IP) IP67
Product type jack
Pin number 19 pole
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
