19580 | Lumberg Automation

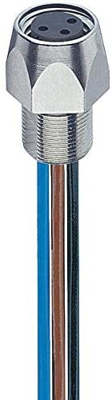

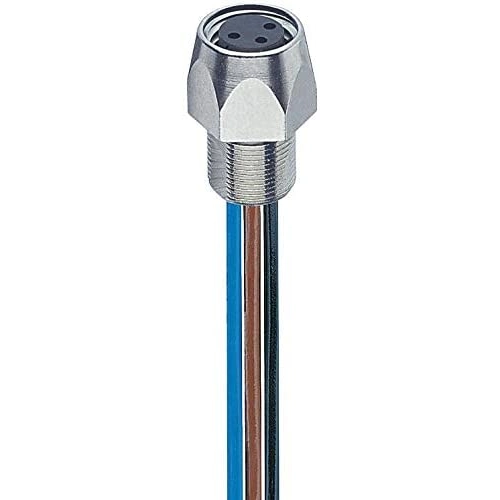

Panel socket, M8, 3 pole, crimp connection, screw locking, straight, 19580
Unit Price (€ / pc.)
10.0198 € *
Standard delivery time from the manufacturer is: 22 Weeks
Sensor-actuator connector, 19580, Lumberg Automation
M8 Standard Sensor/actuator receptacle connector: female, front mount, M8 Screw - mating side, stranded wires - connecting side, 3-pin, unshielded, metallic grey housing, 50 AC/60 DC, 4 A.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Pin number | 3 pole | |
| Product type | panel socket | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking | |
| Assembly | front mounting | |
| Thread size | M8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
