14321 | Lumberg Automation

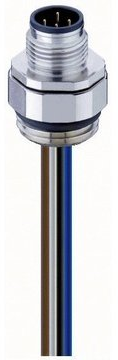

Plug, M12, 5 pole, solder connection, screw locking, straight, 14321
Unit Price (€ / pc.)
9.2701 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Sensor-actuator connector, 14321, Lumberg Automation
M12 Data receptacle connector: male, front mount positionable, M12 - mating side, stranded wires - connecting side, 5-pin, unshielded, metallic grey housing, 50 V AC/60 V DC, 4 A.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Version | plug | |
| Thread size | M12 | |
| Coding | B | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | front mounting | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
