14295 | Lumberg Automation

Plug, M8, 3 pole, solder connection, snap-in/screw locking, straight, 14295

Order No.: 50F4104
EAN: 4099889697469
MPN:
14295
RSMF 3/0,2 M
Series: RSMF
14295 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
6.1761 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
6.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.1761 €

Sensor-actuator connector, 14295, Lumberg Automation

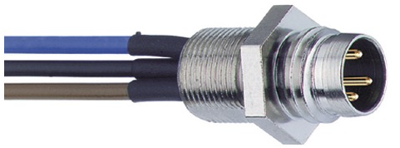

M8 Standard Sensor/actuator receptacle connector: male, front mount, M8 - mating side, stranded wires - connecting side, 3-pin, unshielded, metallic grey housing, 50 AC/60 DC, 4 A.

Features

  • Contact material: CuZn, pre-nickel and gold-plated
  • Pollution degree: 3
  • Degree of protection: IP67
Technical specifications
Pin number 3 pole
Type of locking snap-in/screw locking
Contact connection solder connection
Product type plug
Coding A
Assembly front mounting
Orientation straight
Degree of protection (IP) IP67
Thread size M8
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin CZ
Compliance
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
