11670 | Lumberg Automation

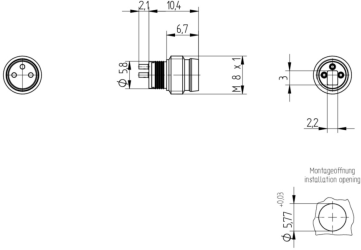

Plug, M8, 3 pole, solder connection, snap-in/screw locking, straight, 11670

Order No.: 50F4101
EAN: 4099889697438
MPN:
11670
RSMESD 3
Series: RSMESD
11670 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
2.1301 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.1301 €

Sensor-actuator connector, 11670, Lumberg Automation

M8 Insert Sensor/actuator receptacle connector: male, insert, M8 - mating side, solder contacts - connecting side, 3-pin, unshielded, metallic grey housing, 50 AC/60 DC, 4 A (24 AWG).

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: II
Technical specifications
Pin number 3 pole
Type of locking snap-in/screw locking
Contact connection solder connection
Product type plug
Coding A
Orientation straight
Degree of protection (IP) IP67/IP69K
Thread size M8
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin CZ
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
