11594 | Lumberg Automation

Plug, 7/8, 5 pole, screw connection, coupling nut, straight, 11594

Order No.: 50F8436
EAN: 4099889698138
MPN:
11594
RSC 50/16
Series: RSC

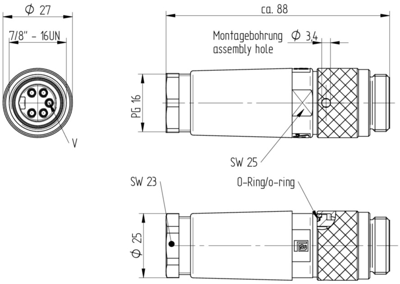

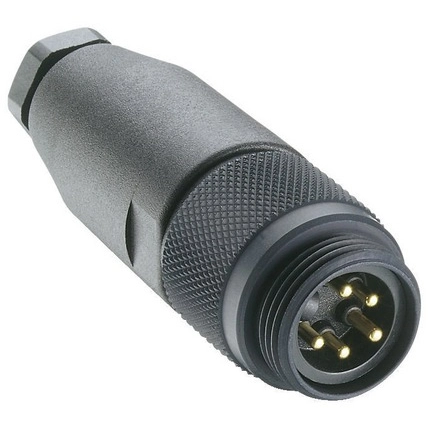

11594 Lumberg Automation Sensor-Actuator Connectors Image 1
11594 Lumberg Automation Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.0654 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
15.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.0654 €

Power connector, 11594, Lumberg Automation

7/8" Power field attachable connector: male, straight, 5-pin (4+PE), black housing, 230 V AC/DC, 9 A.

Features

  • Contact material: CuZn
  • Housing material: PA 66
  • With O-ring
  • Degree of protection: IP67
Technical specifications
Pin number 5 pole
Type of locking coupling nut
Contact connection screw connection
Product type plug
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size 7/8
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin HU
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
