11292 | Lumberg Automation

Panel socket, M8, 4 pole, crimp connection, screw locking, straight, 11292

Order No.: 50F2103
EAN: 4099889694826
MPN:
11292
RKMF 4/0,5 M
Series: RKMF
11292 Lumberg Automation Sensor-Actuator Connectors

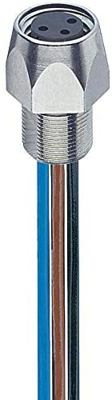

Image may differ
Unit Price (€ / pc.)
9.2939 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
9.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.2939 €

Sensor-actuator connector, 11292, Lumberg Automation

M8 Standard Sensor/actuator receptacle connector: female, front mount, M8 Screw - mating side, stranded wires - connecting side, 4-pin, unshielded, metallic grey housing, 30 V AC/DC, 4 A.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: III
Technical specifications
Filter Property Value
Thread size M8
Pin number 4 pole
Orientation straight
Degree of protection (IP) IP67
Type of locking screw locking
Assembly front mounting
Contact connection crimp connection
contact surface gold-plated
Product type panel socket
Coding A
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead
SVHC free No
Date of RoHS guidelines 3/31/15
