11270 | Lumberg Automation

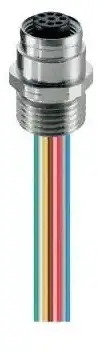

Panel socket, M12, 5 pole, strand connection, screw locking, straight, 11270
Unit Price (€ / pc.)
8.4014 € *
Standard delivery time from the manufacturer is: 22 Weeks
Sensor-actuator connector, 11270, Lumberg Automation
Receptacle, female, M12 for front mounting, 24 and 22 AWG, panel mount thread PG9.
Features
- Contact material: Brass, gold over nickel-plated
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
