11224 | Lumberg Automation
Socket, 7/8, 5 pole, screw connection, coupling nut, straight, 11224
Unit Price (€ / pc.)
14.2205 € *
Standard delivery time from the manufacturer is: 4 Weeks

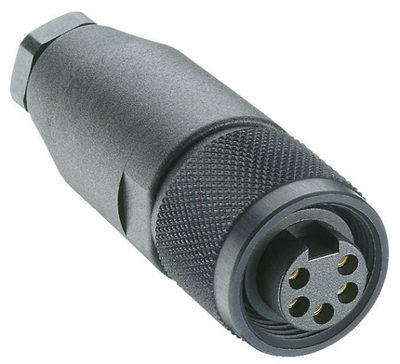

Power connector, 11224, Lumberg Automation
7/8" Power field attachable connector: female, straight, 5-pin (4+PE), black housing, 230 V AC/DC, 9 A.
Features
- Contact material: CuZn
- Housing material: PA 66
- Degree of protection: IP67
Technical specifications
| Pin number | 5 pole | |
| Type of locking | coupling nut | |
| Contact connection | screw connection | |
| Product type | socket | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | 7/8 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
