108692 | Lumberg Automation

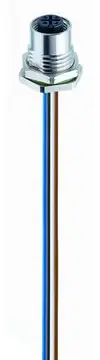

Panel socket, M12, 4 pole, crimp connection, screw locking, straight, 108692
Unit Price (€ / pc.)
6.5569 € *
Standard delivery time from the manufacturer is: 22 Weeks
Sensor-actuator connector, 108692, Lumberg Automation
M12 Standard Sensor/actuator receptacle connector: female, rear mount, M12 - mating side, stranded wires - connecting side, 4-pin, unshielded, metallic grey housing, 230 V AC/DC, 4 A.
Features
- Contact material: CuSn
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Coding | A | |
| Type of locking | screw locking | |
| Thread size | M12 | |
| Degree of protection (IP) | IP67/IP69K | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Assembly | rear mounting | |
| Contact connection | crimp connection | |
| Product type | panel socket |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
