104091 | Lumberg Automation

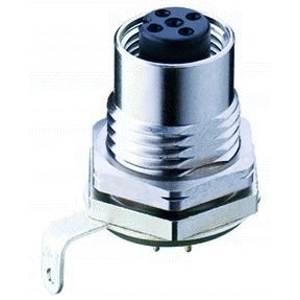

Panel socket, M12, 4 pole, PCB connection, screw locking, straight, 104091
Unit Price (€ / pc.)
16.8504 € *
Standard delivery time from the manufacturer is: 4 Weeks
Sensor-actuator connector, 104091, Lumberg Automation
M12 Standard Sensor/actuator receptacle connector: female, rear mount with shielding clip, M12 - mating side, print contacts - connecting side, 4-pin, shielded, metallic grey housing, 230 V AC/DC, 4 A.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M12 | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | screw locking | |
| Assembly | rear mounting | |
| Contact connection | PCB connection | |
| contact surface | gold-plated | |
| Product type | panel socket | |
| Coding | A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
