9388 | Lumberg Automation
Sensor actuator cable, M23-cable plug, angled to M23-cable socket, straight, 8 pole, 2 m, PUR, black, 2 A, 9388
Unit Price (€ / pc.)
37.0447 € *
Standard delivery time from the manufacturer is: 7 Weeks

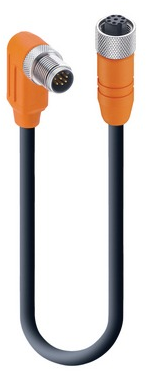

Actuator/sensor double-ended cordset, RSWTS 8-RKTS 8-299/2 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male angled A-coded orange 8-pin M12 Standard connector to female straight A-coded orange 8-pin M12 Standard connector, shielded, 30 V AC/DC, 2 A; PUR black cable, 8-wires, 0.25 mm².
Technical specifications
| Connection (1) | M23-cable plug, angled | |
| Connection (2) | M23-cable socket, straight | |
| Pin number | 8 pole | |
| Cable length | 2 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 2 A |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| RoHS conform | Yes |
