934852322 | Lumberg Automation

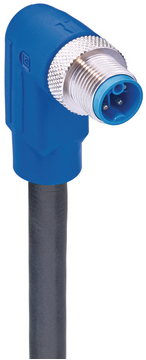

Sensor actuator cable, M12-cable plug, angled to open end, 5 pole, 5 m, PVC, black, 16 A, 934852322
Unit Price (€ / pc.)
41.9951 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Single-ended cordset, RSWT 5K-735/5 M SW, Lumberg Automation

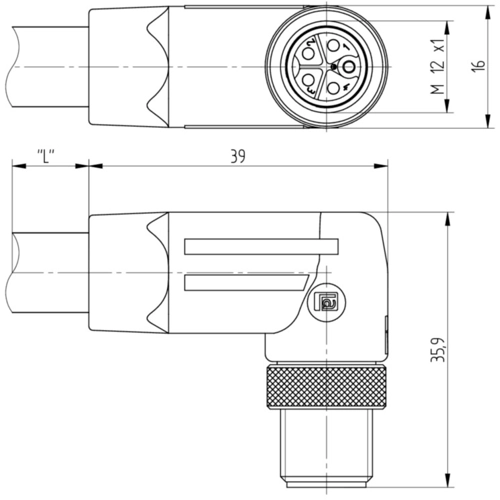

M12 Power single-ended cordset: Male, angled, 5-pin(4+PE), K-coded, blue body, 600 V AC/DC, 16 A; PVC black cable, 1.50 mm².
Technical specifications
| Connection (1) | M12-cable plug, angled | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 630 V | |
| Rated current | 16 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
