934753005 | Lumberg Automation

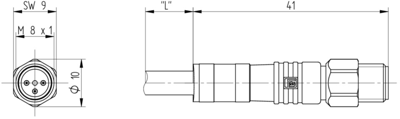

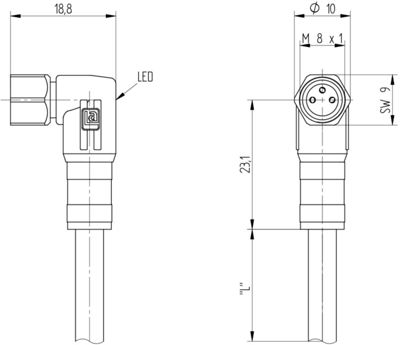

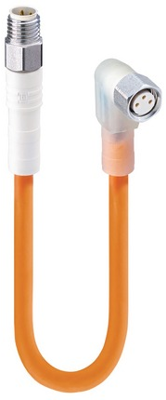

Sensor actuator cable, M8-cable plug, straight to M12-cable socket, angled, 3 pole, 10 m, orange, 934753005
Unit Price (€ / pc.)
48.5401 € *
Standard delivery time from the manufacturer is: 5 Weeks
Actuator/sensor double-ended cordset, WRSMV 3-WRKMWV/LED A 3-520/10 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male straight A-coded white 3-pin M8 F&B (Wash-Down) connector to female angled A-coded transparent 3-pin M8 F&B (Wash-Down) connector with 2xLEDs (PNP), 10-30 V DC, 4 A; TPE orange cable, 3-wires, 0.25 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Connection (1) | M8-cable plug, straight | |
| Degree of protection (IP) | IP67 | |
| Cable length | 10 m | |
| max. Voltage | 30 V | |
| Pin number | 3 pole | |
| Connection (2) | M12-cable socket, angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
