934703020 | Lumberg Automation

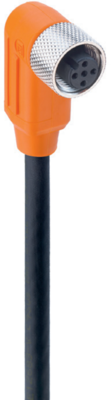

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 10 m, PUR, black, 4 A, 934703020
Unit Price (€ / pc.)
32.0705 € *
Standard delivery time from the manufacturer is: 9 Weeks
Sensor/Actuator Cable, 934703020, LUMBERG
M12 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 5-pin, A-coded, shielded, orange body, 50 V AC / 60 V DC, 4 A, PUR black cable, 5-wires.
Technical Data
- Rated Current: 4 A
- Rated Voltage: 60 V
- Number of Pins: 5
- Cable Jacket Material: TPU
- Cable Jacket Color: black
- Protection Degree: IP67
- Cable Jacket Color: black
Good microbes and hydrolysis resistance, Mainly plasticizer diffusion free, Exclusion of PVC and silicone, LABS-free of lacquer wetting disturbing substances, Coldness flexibilty.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 5 pole | |
| Cable length | 10 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| Date of RoHS guidelines | 3/31/15 |
