88734 | Lumberg Automation

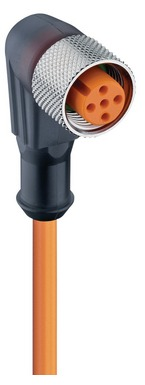

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 8 m, orange, 88734
Unit Price (€ / pc.)
42.9828 € *
Standard delivery time from the manufacturer is: 5 Weeks
Actuator/sensor single-ended cordset, RKWT/LED R 5-259/8 M beidseitig, Lumberg Automation
M12 Standard Actuator/sensor single-ended cordset: Female, angled, 5-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 3xLEDs (PNP); PUR orange cable, 5-wires, 0.50 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Colour | orange | |
| Cable length | 8 m | |
| max. Voltage | 30 V | |
| LED display | Yes | |
| Degree of protection (IP) | IP67 | |
| Connection (1) | M12-cable socket, angled | |
| Pin number | 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
