8242 | Lumberg Automation

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, straight, 4 pole, 4 m, TPE, yellow, 4 A, 8242

Order No.: 50F5258
EAN: 4099891139773
MPN:
8242
RST 4-RKT 4-637/4 M
Series: RST

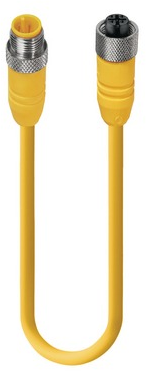

8242 Lumberg Automation Sensor-Actuator Cables Image 1
8242 Lumberg Automation Sensor-Actuator Cables Image 2
8242 Lumberg Automation Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
37.1042 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
371.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
37.1042 €

Actuator/sensor double-ended cordset, RST 4-RKT 4-637/4 M, Lumberg Automation

Actuator/sensor double-ended cordset: Male straight A-coded yellow 4-pin M12 Standard connector to female straight A-coded yellow 4-pin M12 Standard connector, 230 V AC/DC, 4 A; TPE yellow cable, 4-wires, 0.824 mm².

Technical specifications

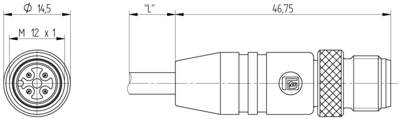

Connection (1) M12-cable plug, straight

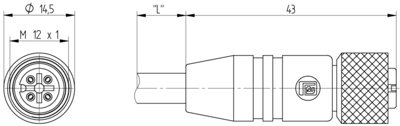

Connection (2) M12-cable socket, straight
Pin number 4 pole
Cable length 4 m
Colour yellow
Material TPE
Degree of protection (IP) IP67
LED display No
max. Voltage 250 V
Rated current 4 A
Logistics
Country of origin CZ
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead
SVHC free No
RoHS conform Yes
