7109 | Lumberg Automation

Sensor actuator cable, M12-cable socket, angled to open end, 8 pole, 2 m, PUR, black, 2 A, 7109

Order No.: 50F3690
EAN: 4099891130251
MPN:
7109
RKWTS 8-450/2 M
Series: RKWTS

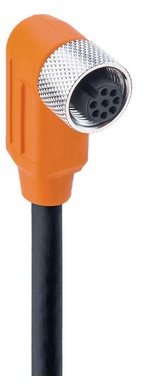

7109 Lumberg Automation Sensor-Actuator Cables Image 1
7109 Lumberg Automation Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
19.6945 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
590.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
30 pcs.
19.6945 €

Actuator/sensor single-ended cordset, RKWTS 8-450/2 M, Lumberg Automation

M12 Standard Actuator/sensor single-ended cordset: Female, angled, 8-pin, A-coded, shielded, orange body, 30 V AC/DC, 2 A; PUR black cable, 8-wires, 0.25 mm².

Technical specifications
Filter Property Value
Connection (1) M12-cable socket, angled
Connection (2) open end
Pin number 8 pole
Cable length 2 m
Colour black
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 30 V
Rated current 2 A
Logistics
Property Value
Country of origin CZ
Customs tariff number 85444290
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead
SVHC free No
RoHS conform Yes
