62980 | Lumberg Automation

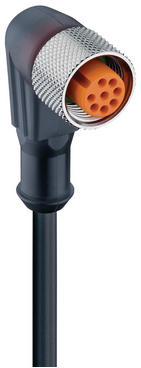

Sensor actuator cable, M12-cable socket, angled to open end, 6 pole, 5 m, PUR, black, 2 A, 62980
Unit Price (€ / pc.)
24.2165 € *
Standard delivery time from the manufacturer is: 6 Weeks
Actuator/sensor single-ended cordset, RKWT 8-6-337/5M, Lumberg Automation
M12 Standard Actuator/sensor single-ended cordset: Female, angled, 8-pin, A-coded, translucent body, 30 V AC/DC, 2 A; PUR black cable, 6-wires, 0.34 mm².
Technical specifications
| Cable length | 5 m | |
| Colour | black | |
| LED display | No | |
| Degree of protection (IP) | IP67 | |
| Rated current | 2 A | |
| Connection (2) | open end | |
| Pin number | 6 pole | |
| Material | PUR | |
| Connection (1) | M12-cable socket, angled |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| RoHS conform | Yes |
