43795 | Lumberg Automation

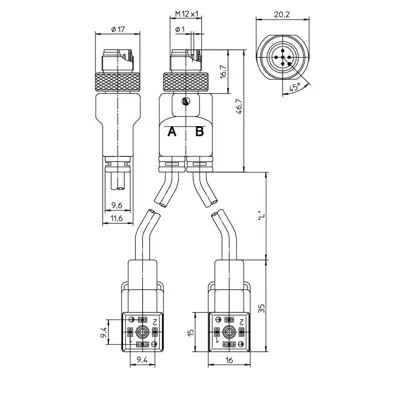

Sensor actuator cable, M12-cable plug, straight to valve connector DIN shape C, 5 pole, 0.3 m, PUR, black, 4 A, 43795
Unit Price (€ / pc.)
48.7186 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Micro splitter cordset, ASB 2-VC 1A-1-3-226/0,3 M, Lumberg Automation
M12 Micro splitter cordset, double-ended, M12 Duo male connector with self-locking threaded joint, PUR halogen free molded cable and two valve connectors according to DIN EN 175301-803, form C.
Technical specifications
| Connection (1) | M12-Kabelstecker, gerade | |
| Connection (2) | Ventilsteckverbinder DIN form C | |
| Pin number | 5-polig | |
| Cable length | 0.3 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 32 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
