42743 | Lumberg Automation

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 4 pole, 15 m, PUR, yellow, 4 A, 42743

Order No.: 50F5367
EAN: 4099891140762
MPN:
42743
RST 4-RKWT 4-602/1,5 M
Series: RST

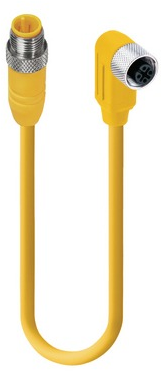

42743 Lumberg Automation Sensor-Actuator Cables Image 1
42743 Lumberg Automation Sensor-Actuator Cables Image 2
42743 Lumberg Automation Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
28.4648 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
284.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
28.4648 €

Actuator/sensor double-ended cordset, RST 4-RKWT 4-602/1,5 M, Lumberg Automation

Actuator/sensor double-ended cordset: Male straight A-coded yellow 4-pin M12 Standard connector to female angled A-coded yellow 4-pin M12 Standard connector, 230 V AC/DC, 4 A; PUR yellow cable, 4-wires, 0.824 mm².

Technical specifications
Connection (1) M12-cable plug, straight
Connection (2) M12-cable socket, angled
Pin number 4 pole
Cable length 15 m
Colour yellow
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 250 V
Rated current 4 A
Logistics
Country of origin CZ
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead
SVHC free No
RoHS conform Yes
