18542 | Lumberg Automation
Sensor actuator cable, M8-cable socket, straight to M8-cable socket, straight, 3 pole, 10 m, PUR, black, 4 A, 18542
Unit Price (€ / pc.)
23.3835 € *
Standard delivery time from the manufacturer is: 23 Weeks

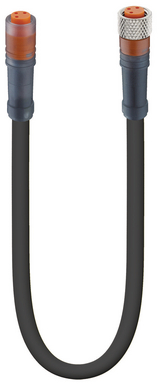

Actuator/sensor double-ended cordset, RKM 3-RKMV 3-224/10 M, Lumberg Automation

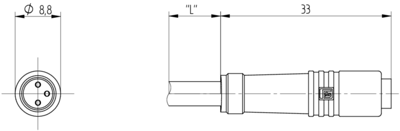

Actuator/sensor double-ended cordset: Female straight A-coded translucent 3-pin M8 Snap-In connector to female straight A-coded translucent 3-pin M8 Snap-In connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 3-wires, 0.34 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M8-cable socket, straight | |
| Connection (2) | M8-cable socket, straight | |
| Pin number | 3 pole | |
| Cable length | 10 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
