18264 | Lumberg Automation

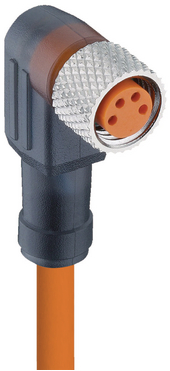

Sensor actuator cable, M8-cable socket, angled to open end, 4 pole, 3 m, PVC, orange, 4 A, 18264
Unit Price (€ / pc.)
10.7814 € *
Standard delivery time from the manufacturer is: 23 Weeks
Actuator/sensor single-ended cordset, RKMWV 4-07/3 M, Lumberg Automation
Actuator/sensor cordset, single-ended, M8, 4-poles, female 90° connector with self-locking threaded joint and molded cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M8-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 4 pole | |
| Cable length | 3 m | |
| Colour | orange | |
| Material | PVC | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
