16276 | Lumberg Automation

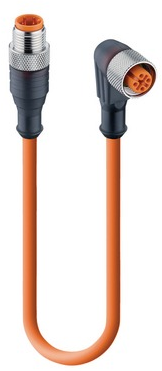

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 4 pole, 8 m, PUR, orange, 4 A, 16276
Unit Price (€ / pc.)
27.2272 € *
Available: 0 pcs.
Leadtime: 42 Weeks **
Actuator/sensor double-ended cordset, RST 4-RKWT 4-251/8 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male straight A-coded translucent 4-pin M12 Standard connector to female angled A-coded translucent 4-pin M12 Standard connector, 230 V AC/DC, 4 A; PUR orange cable, 4-wires, 0.34 mm².
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | M12-cable socket, angled | |
| Colour | orange | |
| Cable length | 8 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
