15321 | Lumberg Automation

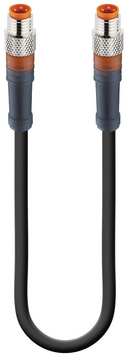

Sensor actuator cable, M8-cable plug, straight to M8-cable plug, straight, 3 pole, 0.3 m, PVC, black, 4 A, 15321
Unit Price (€ / pc.)
19.5755 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Actuator/sensor double-ended cordset, RSMV 3-RSMV 3-294/0,3 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male straight A-coded translucent 3-pin M8 Standard connector to male straight A-coded translucent 3-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PVC black cable, 3-wires, 0.34 mm².
Technical specifications
| Connection (1) | M8-cable plug, straight | |
| Connection (2) | M8-cable plug, straight | |
| Colour | black | |
| Cable length | 0.3 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
