13538 | Lumberg Automation
Sensor actuator cable, M12-cable socket, straight to open end, 4 pole, 2 m, PUR, yellow, 4 A, 13538
Unit Price (€ / pc.)
20.5513 € *
Standard delivery time from the manufacturer is: 5 Weeks

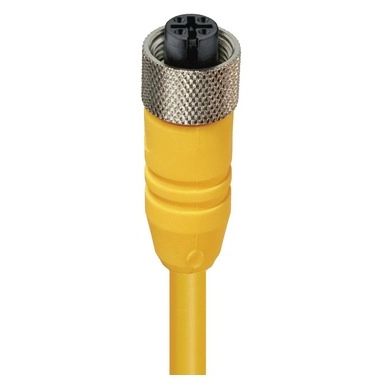

Actuator/sensor single-ended cordset, RKT 4-798/2 M, Lumberg Automation
M12 Standard Actuator/sensor single-ended cordset: Female, straight, 4-pin, A-coded, yellow body, 230 V AC/DC, 4 A; PUR yellow cable, 4-wires, 0.824 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Pin number | 4 pole | |
| Colour | yellow | |
| Rated current | 4 A | |
| Material | PUR | |
| max. Voltage | 250 V | |
| Cable length | 2 m | |
| LED display | No | |
| Connection (1) | M12-cable socket, straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
