12010 | Lumberg Automation

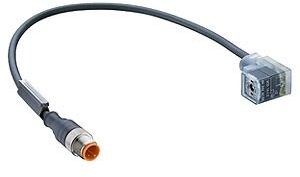

Sensor actuator cable, M12-cable plug, straight to valve connector, 3 pole, 3 m, PUR, black, 4 A, 12010
Unit Price (€ / pc.)
20.4799 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Actuator cordset, RST 5-3-VCD 1A-1-3-226/3 M, Lumberg Automation
Actuator cordset, double-ended, M12 male connector with self-locking threaded joint and valve connector according to DIN EN 175301-803, form C (8.0 mm), 3 poles, varistor voltage protection (LED yellow), PUR jacket, halogen free, black, 0.3 meters.
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | valve connector | |
| Colour | black | |
| Cable length | 3 m | |
| LED display | Yes | |
| Material | PUR | |
| max. Voltage | 32 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
