107766 | Lumberg Automation

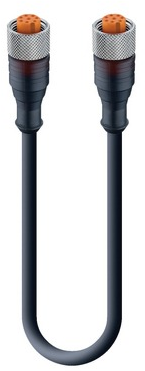

Sensor actuator cable, M12-cable socket, straight to M12-cable socket, straight, 8 pole, 40 m, PUR, black, 2 A, 107766
Unit Price (€ / pc.)
137.3141 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Actuator/sensor double-ended cordset, RKT 8-RKT 8-344/40 M, Lumberg Automation
Actuator/sensor double-ended cordset: Female straight A-coded translucent 8-pin M12 Standard connector to female straight A-coded translucent 8-pin M12 Standard connector, 30 V AC/DC, 2 A; PUR black cable, 8-wires, 0.25 mm².
Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | M12-cable socket, straight | |
| Colour | black | |
| Cable length | 40 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
